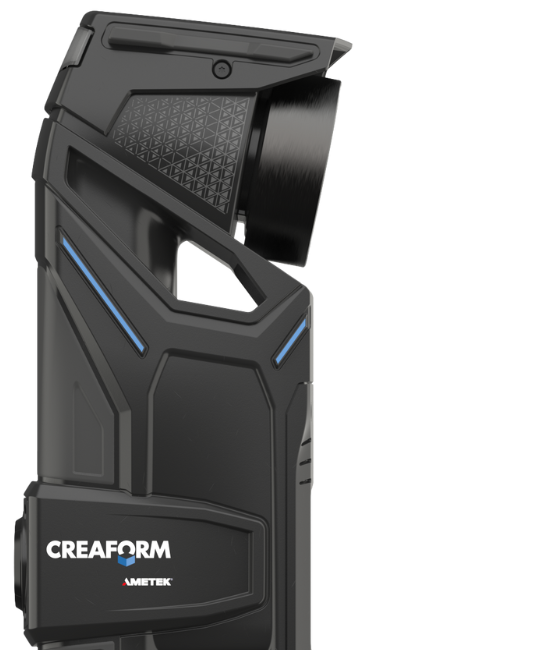

HandySCAN 3D|MAX Series

The truly portable metrology-grade 3d scanner for large parts



When accuracy meets versatility and portability

Combining the effect of portability, accuracy, speed, and simplicity, which are inherent to the HandySCAN 3D line-up, the new MAX Series is optimized to acquire highly accurate 3D measurements on large and complex parts typically present in the aerospace, transportation, energy, mining, and heavy industries.

Engineered to capture fine details and scan large volumes equally well, the HandySCAN 3D|MAX Series enables professionals to measure large parts and assemblies in a simpler scanning process, resulting in high-quality 3D scans in just a matter of minutes.

Request more information
HansdySCAN 3D

Want to see the HandySCAN MAX in action?

Discover this scanner's Flex Volume and Smart Surface Algorithm, and Real-Time Calibration

How to buy



Large part size & speed

Due to its 38 laser lines and large scanning area, the HandySCAN 3D|MAX Series is the 3D scanner for measuring large part sizes—up to 15 m (50 ft)—quickly and easily, providing metrology-grade results in mere minutes.

Its Flex Volume feature offers an adjustable, flexible working distance—from 0.3m (1 ft) to 2.5m (8.2 ft). This means that the user can scan smaller areas with remarkable quality at a short distance and measure large parts at very high speed from a longer distance.

  • Quick setup and scanning process
  • Large and extendable measuring volume
  • Instant mesh and ready-to-use files

Accuracy & high resolution

Featuring dynamic referencing and volumetric accuracy optimization, this 3D measurement solution is engineered to work in harsh environments and deliver high accuracy on large measurements, regardless of the user’s experience level.

With its Real-Time Calibration capability, the MAX Series integrates the calibration step directly into the scanning workflow, performing it automatically and seamlessly for the user. Its Flex Volume feature also provides high precision and a fine level of detail on areas captured at a short distance.

  • Measurement accuracy insensitive to environmental instabilities
  • ISO 17025 accredited and compliant with the VDI/VDE 2634 part 3 standard
  • Integrated photogrammetry
  • Fine detail capacity

Versatility & simplicity

The HandySCAN 3D|MAX Series can master any surface type, including shiny, oily, and even reflective finishes, and it does so without the need for surface treatment or part preparation.

With its sophisticated algorithms and image processing operation, the Smart Surface Algorithm feature optimizes surface measurement, thus offering better tracking, better performance, and better readings of difficult, contrasted finishes.

This means that users can enjoy a simpler scanning process.

  • Blue laser technology
  • Real-time mesh visualization
  • Plug and play

Looking for the ultimate portable metrology-grade 3D scanner for measuring large parts?

Our experts will guide you through the technical specifications!

How to buy

Software suites

VXelements™

Software

VXelements™

3D scanning software platform

3D measurement software platform and application suite. The intelligence behind Creaform’s 3D measurement and scanning solutions.

Learn more



VXintegrity

VXintegrity

VXintegrity

NDT Software Platform

Composed of four software modules designed specifically for the NDT industries, VXintegrity combines NDT knowledge and market intelligence to raise the quality of analysis and reporting to a higher level.

Learn more



Compatible Software

3D systems
Innovmetric
Dassault
Metrologic
Siemens
PTC
Autodesk

Technical Specifications

View all specs

  HandySCAN MAX™ HandySCAN MAX™|Elite

Accuracy

0.150 mm

(0.0059 in)

0.075 mm

(0.0030 in)

Part size range (recommended)

1-10 m

(3.3–32.8 ft)

1-15 m

(3.3–49.2 ft)

Working Distance

0.45 to 1.6 m

(1.5–5.2 ft)

0.3 to 2.5 m

(1.0–8.2 ft)



Which 3D scanner corresponds to your needs ?

    HandySCAN 3D MAX Series scanner specs HandySCAN 3D
MAX Series
  HandySCAN 3D Black Series scanner specs HandySCAN 3D
BLACK Series
  HandySCAN 3D Silver Series scanner specs HandySCAN 3D
SILVER Series
  Go!SCAN 3D scanner specs Go!SCAN 3D   MetraSCAN 3D scanner specs MetraSCAN 3D
Accuracy   0.075 mm(0.0030 in)   0.025 mm(0.0009 in)   Up to 0.030 mm(0.0012 in)   Up to 0.050 mm(0.0020 in)   0.025 mm (0.0009 in)
Probing                   X
Color Acquisition               X
Light Source   38 blue laser lines   30 blue laser lines (+ 1 extra line)   14 blue laser lines (+ 1 extra line)   White light (99 stripes)   30 blue laser lines (+ 1 extra line)
Accreditation   ISO 17025   ISO 17025           ISO 17025
Price   + + +   + + +   +   + +   + + + +
    View the full specs   View the full specs   View the full specs   View the full specs   View the full specs
